Lead Lined Door for CT Scan Rooms

MODEL NO.: FHD-103

Lead lined door for CT scan rooms with 1.0-2.0mmPb equivalence per physicist report
Optional lead glass window matched to the door Pb rating for patient observation
HPL laminate finish - antibacterial, easy to clean, Formica® panels
Custom lead equivalents and dimensions per room shielding calculation
Type-test report to IEC 61331-1 with every door
Lead-lined frame with 15mm overlap for continuous shielding

Brand Fenghe
Product origin China
Delivery time 20-35 days
Supply capacity 1,000+ sets/month

Get Quote Contact Us Email

Product Details

Product Features

Lead lined door for CT scan rooms with 1.0-2.0mmPb equivalence per physicist report
Optional lead glass window matched to the door Pb rating for patient observation
HPL laminate finish - antibacterial, easy to clean, Formica® panels
Custom lead equivalents and dimensions per room shielding calculation
Type-test report to IEC 61331-1 with every door
Lead-lined frame with 15mm overlap for continuous shielding

Product Parameters

Door type	Lead lined door for CT scan rooms
Lead equivalence	1.0 / 1.5 / 2.0 mmPb (per shielding report)
Door leaf width	800-1800mm (custom)
Door height	2000-2400mm (custom)
Material of door leaf	HPL laminate over lead-lined core
Door frame	Lead-lined steel, min 15mm overlap
Vision panel	Lead glass, matched Pb rating (optional)
Surface	Antibacterial HPL, easy to clean
Test standard	IEC 61331-1 type-test report
Applications	CT scan rooms, radiology departments, fluoroscopy

The lead lined door configured for CT scan rooms and radiology departments - built to the physicist's shielding report, with matched lead glass observation windows and type-test documentation.

Configured for CT Scan Rooms

This lead lined door is configured specifically for CT scan rooms, where the physicist typically specifies 2.0mmPb equivalence based on the scanner workload and room geometry. The lead sheet is bonded into the door core during manufacture, finished with HPL laminate on both faces - the door looks like a standard hospital door while providing radiation shielding.

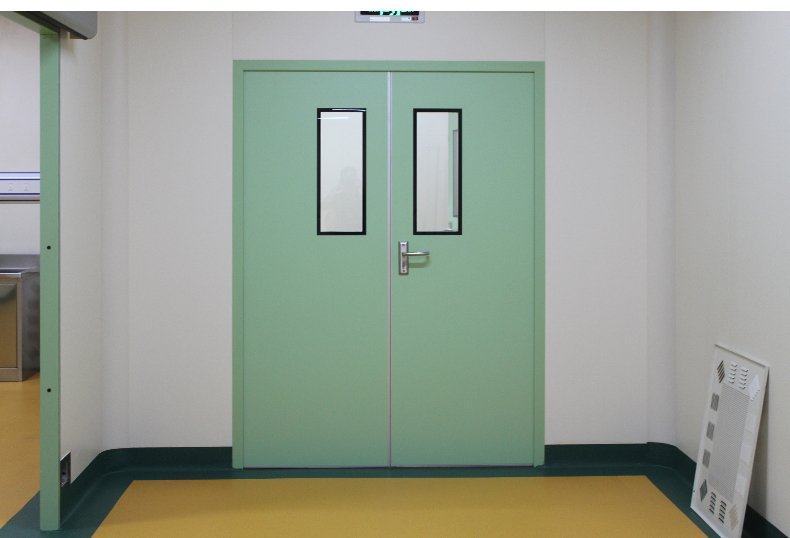

Lead Glass Observation Windows

The optional lead glass window allows technologists to observe the patient during scanning without opening the door. The lead glass Pb rating matches the door leaf (typically 2.0mmPb for CT), with the window frame overlapping the door lead on all sides and sealed with radiation-absorbing silicone.

Hygienic Faces and Reliable Closing

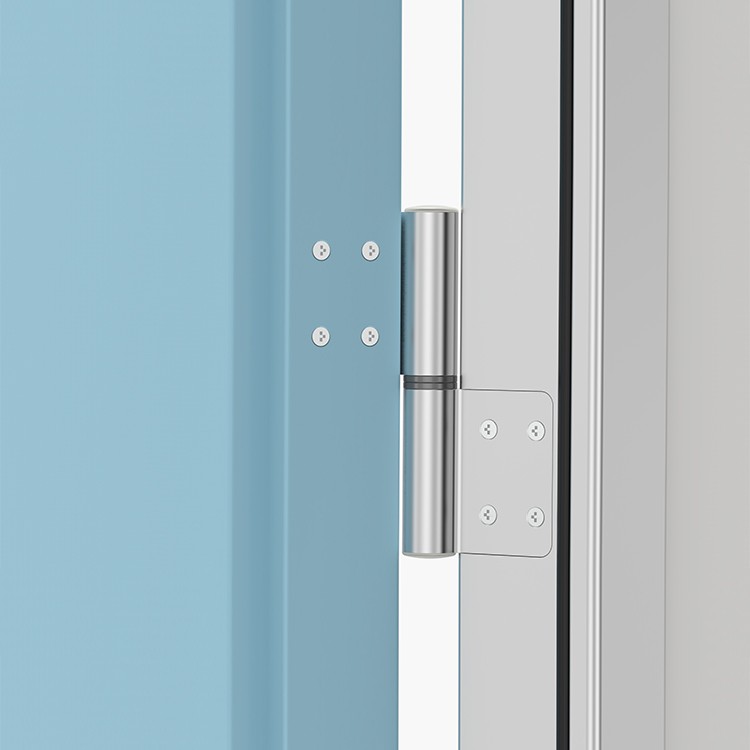

HPL laminate surfaces are antibacterial and withstand daily disinfectant wipe-down. The door operates with a hydraulic closer that compresses the perimeter gasket on every close, maintaining both the airtight seal and the radiation shield. Hinges and locks are mounted through the lead with lead washers.

Type-Test Reports to IEC 61331-1

Every door ships with a type-test report to IEC 61331-1 documenting the measured attenuation at the specified kVp. This report is required for your facility commissioning and regulatory compliance.

Frequently Asked Questions

Is 2.0mmPb enough for a CT room?

Usually yes - 2.0mmPb is the typical CT specification, but the final value comes from your radiation physicist's shielding report based on scanner workload and room geometry. We build to that report door by door.

Does the window's lead glass match the door?

Yes. The vision panel uses lead glass with a Pb rating matching the leaf, and the window frame overlaps the door's lead on all four sides so the opening never becomes a leakage path.

How is airtight closing maintained?

A hydraulic closer compresses the perimeter gasket on every close, keeping the seal consistent cycle after cycle instead of relying on staff to push the door shut.

What documentation ships with the door?

Every door carries a type-test report to IEC 61331-1 documenting measured attenuation at the specified kVp - the document your facility commissioning and regulatory submissions need.

What is the lead time?

Production runs 20-35 days after drawing and shielding confirmation, with lead levels verified before shipment.
